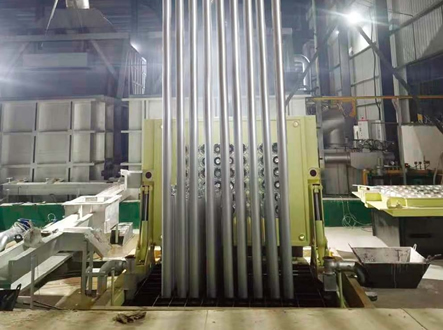

Billet Casting Equipment

The casting table features high-purity graphite rings, a self-centering cast iron starting head, and systems for molten aluminum and cooling water dispatch. It offers variable casting speeds of 60-850 mm/min, utilizing Fuji inverter speed control, with advanced design and machining for precise operation.



Product Description

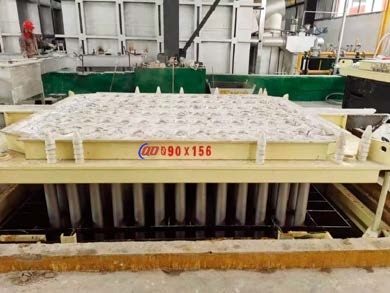

Casting table includes all crystallizers, aluminium molten metal dispatching system, cooling water dispatching system and starting head system. Graphite rings are made of high purity graphite; fireproof material adopts "ZHONGNAI NO.1 "INS140 preformed unit.The starting head is made of cast iron and adopts a self-centering design. The top casting table and starting head pedestal are connected by four bolts, allowing them to be assembled and disassembled as a whole unit. Top casting table can tilt 900 if it's connected to tilting cylinders via other four bolts.All parts are designed by Solid Works, finite element analysis and precision CNC machining, The casting machine has an infinitely variable casting speed range of 60-850 mm/min, and is equipped with a manual lowering device. It adopts imported Fuji inverter frequency conversion speed regulation. The casting machine includes hoisting mechanism, well-head frame, tilting mechanism, hydraulic system, electric control system and water inlet rotary joint.


Features

The continuous casting machine consists of a hoist mechanism, a casting pit frame, a tilting mechanism, a hydraulic system, an electrical control system, and a rotating water inlet.

The casting speed of the casting machine is 60 - 850 mm/min.

There is no adjustable grade, and a manual descent device is provided.

Imported Fuji inverter is used for speed regulation.



Technical Parameters

Round Billet Φ65mm ( 2.5inch )→ Φ505mm (20inch )

Slab 75mm x 75mm→ 320mm x 320mm

Hollow Billet 75mm x 75mm→ 320mm x 320mm

Slab Ingot 420mm x 90mm→1360mm x 640mm

Product's Maximum Length 12.5m
